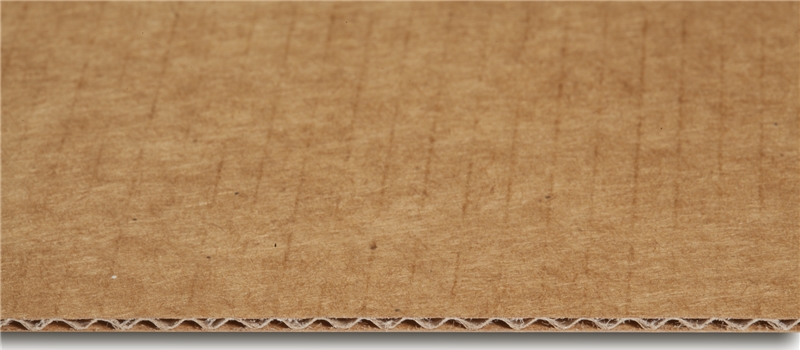

E Flute
Due to the high number of flutes per square meter, the surface crushing resistance is high. It gives a clear printing surface in printed boxes compared to other corrugated types. Printed cardboard is laminated and used directly as a product box.
Flute Height: 1.0 – 1.8 mm
Wave Length: 3.0 – 3.5 mm
Number Value of Flutes: 285 – 334
Corrugated Coefficient Value: 1.22 – 1.29
B Flute
Same as E flute, the surface crushing resistance is high due to the high number of flutes per square meter. It gives a clear printing surface in printed boxes compared to other corrugated types. Printed cardboard is laminated and used directly as a product box.
Flute Height: 2.5 – 3.0 mm
Wave Length: 5.5 – 8.5 mm
Number Value of Flute: 153 -181
Corrugated Coefficient Value: 1.30 – 1.39

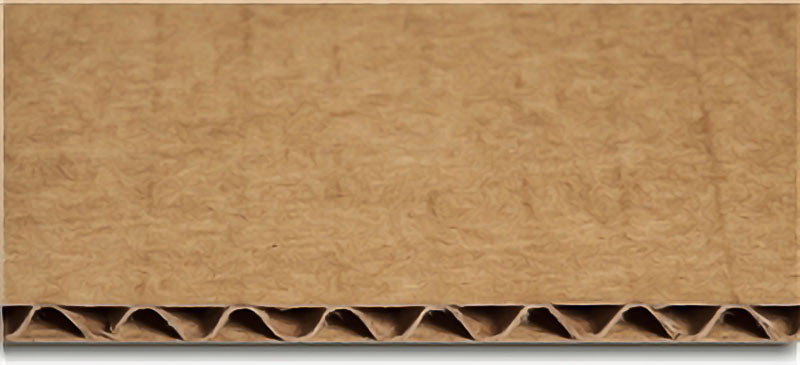

C Flute
It has widespread usage in recent years. It is preferred because of the high number of flutes instead of the A flute manufactured before. It is a type of corrugated cardboard with high carrying capacity which also gives good results on printed surfaces.
Flute Height: 3.2 – 4.0 mm
Wave Length: 6.8 – 8.0 mm
Number Value of Flute: 125 – 147
Corrugated Coefficient Value: 1.42 – 1.50

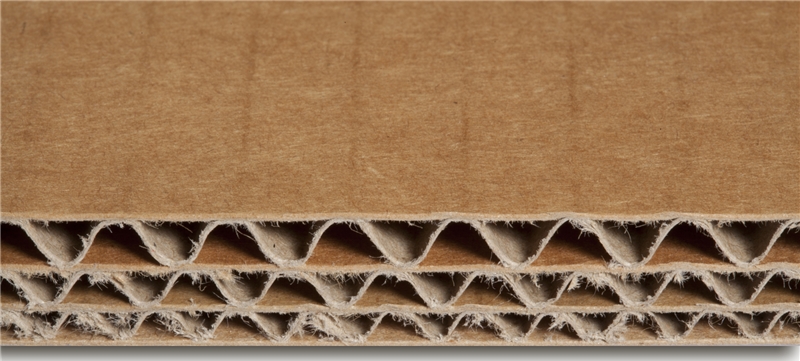

A + C + B Triplex
The combination of seven papers, A flute, C flute, and B flute, is three-flute corrugated cardboard, in which heavyweight papers are generally used. It is used in the packaging of heavy industry products. For the purpose of use, triplex can be manufactured by choosing different flute types.
Wall thickness: 12 mm
